Multi-Level Tree Navigation¶
examples/11_tree_navigation.py · run it with uv run python examples/11_tree_navigation.py
URL-addressable drill-down over three levels with explicit back buttons:

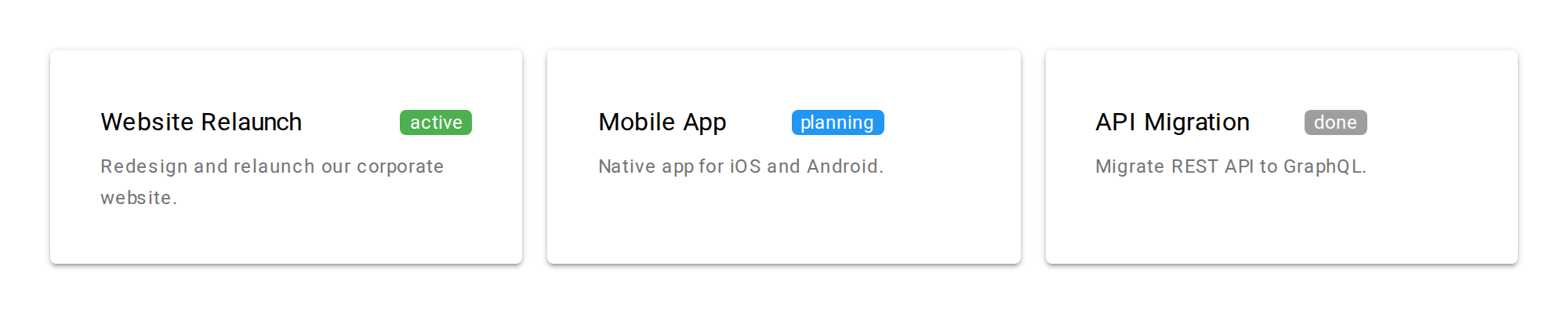

Level 1 /projects Card grid of all projects
Level 2 /projects/{pid} Edit project + button to the task list
Level 3 /projects/{pid}/tasks Task list (ModelList, profile='summary')
Level 4 /projects/{pid}/tasks/{tid} Task detail form (profile='detail')
Patterns shown:
- URL factory R: every URL pattern lives in one place; pages register with
@ui.page(R.TASK) and navigate with R.TASK.format(...) — changing a URL is a
one-line edit.
- FilteredAdapter: the task list is a parent-filtered view of one global
adapter; defaults= stamps new tasks with the current project key.
- Meta.profiles: the same Task model renders as a compact list
('summary') and as a full detail form ('detail', hiding project_key)
without repeating include=/exclude= at every call site.
Further sub-collections (notes, files, ...) repeat the Level-3/4 pattern.
Replace the in-memory ListAdapters with JsonListAdapter or SqlModelAdapter
for persistence without changing any page logic.
Source
"""
# Multi-Level Tree Navigation
URL-addressable drill-down over three levels with explicit back buttons:
Level 1 `/projects` Card grid of all projects
Level 2 `/projects/{pid}` Edit project + button to the task list
Level 3 `/projects/{pid}/tasks` Task list (`ModelList`, `profile='summary'`)
Level 4 `/projects/{pid}/tasks/{tid}` Task detail form (`profile='detail'`)
Patterns shown:
- **URL factory `R`**: every URL pattern lives in one place; pages register with
`@ui.page(R.TASK)` and navigate with `R.TASK.format(...)` — changing a URL is a
one-line edit.
- **`FilteredAdapter`**: the task list is a parent-filtered view of one global
adapter; `defaults=` stamps new tasks with the current project key.
- **`Meta.profiles`**: the same `Task` model renders as a compact list
(`'summary'`) and as a full detail form (`'detail'`, hiding `project_key`)
without repeating `include=`/`exclude=` at every call site.
Further sub-collections (notes, files, ...) repeat the Level-3/4 pattern.
Replace the in-memory `ListAdapter`s with `JsonListAdapter` or `SqlModelAdapter`
for persistence without changing any page logic.
"""
from typing import Literal
from nicegui import ui
from pydantic import BaseModel, Field
from niceview import ListAdapter, FilteredAdapter, ModelList, EditFormWrapper
# ---------------------------------------------------------------------------
# Data models
# ---------------------------------------------------------------------------
class Project(BaseModel):
name: str = Field(default='', title='Name', max_length=50)
description: str = Field(default='', title='Description')
status: Literal['planning', 'active', 'done'] = Field(default='planning', title='Status')
budget: float = Field(default=0.0, title='Budget (k€)', ge=0)
def __str__(self) -> str:
return self.name
class Task(BaseModel):
project_key: str = Field(default='') # ListAdapter key of the parent project
title: str = Field(default='', title='Title', max_length=100)
priority: Literal['low', 'medium', 'high'] = Field(default='medium', title='Priority')
done: bool = Field(default=False, title='Done')
class Meta:
profiles = {
'summary': ['title', 'priority'], # list view: title + subtitle
'detail': ['title', 'priority', 'done'], # form view: everything but project_key
}
def __str__(self) -> str:
return self.title
# ---------------------------------------------------------------------------
# In-memory storage
# ListAdapter assigns sequential keys: first project → "0", second → "1", …
# ---------------------------------------------------------------------------
projects_adapter = ListAdapter(Project, [
Project(name='Website Relaunch', description='Redesign and relaunch our corporate website.',
status='active', budget=45.0),
Project(name='Mobile App', description='Native app for iOS and Android.',
status='planning', budget=120.0),
Project(name='API Migration', description='Migrate REST API to GraphQL.',
status='done', budget=30.0),
])
tasks_adapter = ListAdapter(Task, [
Task(project_key='0', title='Create wireframes', priority='high', done=True),
Task(project_key='0', title='Implement homepage', priority='high', done=False),
Task(project_key='0', title='Write tests', priority='medium', done=False),
Task(project_key='1', title='Define requirements', priority='high', done=True),
Task(project_key='1', title='Setup CI/CD', priority='medium', done=False),
])
# ---------------------------------------------------------------------------
# URL patterns — single source of truth: register with @ui.page(R.X),
# navigate with R.X.format(pid=..., tid=...)
# ---------------------------------------------------------------------------
class R:
PROJECTS = '/projects'
PROJECT = '/projects/{pid}'
TASKS = '/projects/{pid}/tasks'
TASK = '/projects/{pid}/tasks/{tid}'
# ---------------------------------------------------------------------------
# Layout helpers
# ---------------------------------------------------------------------------
_STATUS_COLOR = {'planning': 'blue', 'active': 'green', 'done': 'grey'}
def _fields_full_width(wrapper: EditFormWrapper) -> None:
"""Make all rendered form fields full width (layout-only, no NiceView API change)."""
for widget in wrapper.form.widgets.values():
if hasattr(widget, 'classes') and callable(widget.classes):
widget.classes('w-full')
def page_header(title: str, back_url: str | None = None) -> None:
"""App bar with optional back button (always visible, never just the browser back)."""
with ui.header().classes('items-center gap-1'):
if back_url:
ui.button(icon='arrow_back',
on_click=lambda: ui.navigate.to(back_url)) \
.props('flat color=white round dense')
ui.label(title).classes('text-h6')
def _not_found(label: str, back_url: str) -> None:
page_header('Not found', back_url)
ui.label(f'{label} not found.').classes('text-negative q-pa-md')
# ---------------------------------------------------------------------------
# Level 1 — Project card grid
# ---------------------------------------------------------------------------
@ui.page(R.PROJECTS)
@ui.page('/')
def page_projects() -> None:
page_header('Projects')
with ui.grid(columns='repeat(auto-fill, minmax(280px, 1fr))').classes('w-full gap-4 q-pa-md'):
for key, project in projects_adapter.items():
with ui.card().classes('cursor-pointer').on(
'click', lambda k=key: ui.navigate.to(R.PROJECT.format(pid=k))):
with ui.card_section():
with ui.row().classes('items-center justify-between no-wrap'):
ui.label(project.name).classes('text-subtitle1')
ui.badge(project.status,
color=_STATUS_COLOR.get(project.status, 'grey'))
ui.label(project.description).classes('text-caption text-grey-7 q-mt-xs')
# ---------------------------------------------------------------------------
# Level 2 — Project detail + navigation to the task list
# ---------------------------------------------------------------------------
@ui.page(R.PROJECT)
def page_project(pid: str) -> None:
try:
project = projects_adapter.read(pid)
except (KeyError, ValueError):
_not_found('Project', R.PROJECTS)
return
page_header(project.name, back_url=R.PROJECTS)
with ui.row().classes('w-full flex-wrap q-pa-md gap-4 items-start'):
with ui.card().classes('col'):
_fields_full_width(EditFormWrapper.from_adapter(Project, projects_adapter, pid).render())
with ui.card().classes('col-auto'):
task_count = sum(1 for t in tasks_adapter if t.project_key == pid)
ui.button(f'Tasks ({task_count})', icon='task_alt',
on_click=lambda: ui.navigate.to(R.TASKS.format(pid=pid))) \
.classes('w-full')
# ---------------------------------------------------------------------------
# Level 3 — Task list (parent-filtered, profile='summary')
# ---------------------------------------------------------------------------
@ui.page(R.TASKS)
def page_tasks(pid: str) -> None:
try:
project = projects_adapter.read(pid)
except (KeyError, ValueError):
_not_found('Project', R.PROJECTS)
return
page_header(f'{project.name} – Tasks', back_url=R.PROJECT.format(pid=pid))
filtered = FilteredAdapter(tasks_adapter,
predicate=lambda t: t.project_key == pid,
defaults={'project_key': pid})
with ui.column().classes('col-12 col-md-4 q-pa-md'):
ml = ModelList.from_adapter(Task, filtered, profile='summary')
ml.on_select(lambda e: ui.navigate.to(R.TASK.format(pid=pid, tid=e.row_key)))
ml.render()
# ---------------------------------------------------------------------------
# Level 4 — Task detail (profile='detail' hides project_key)
# ---------------------------------------------------------------------------
@ui.page(R.TASK)
def page_task(pid: str, tid: str) -> None:
try:
task = tasks_adapter.read(tid)
except (KeyError, ValueError):
_not_found('Task', R.TASKS.format(pid=pid))
return
if task.project_key != pid:
_not_found('Task', R.TASKS.format(pid=pid))
return
page_header(task.title, back_url=R.TASKS.format(pid=pid))
with ui.column().classes('q-pa-md w-full max-w-lg'):
with ui.card().classes('w-full'):
_fields_full_width(EditFormWrapper.from_adapter(Task, tasks_adapter, tid,
profile='detail').render())
ui.run(title='11 — Tree Navigation')
